Big Bag & Sack Discharging Equipment

Powder Handling & Processing Equipment and Systems

Big Bag & Sack Discharging Equipment

Big Bag Discharging Stations (FIBC Emptying Stations)

The big bag discharging stations are designed for safe and efficient unloading of powders and bulk solids from FIBC bags. It can be integrated with vacuum conveying equipment and milling systems to create a fully automated and dust-free powder handling process.

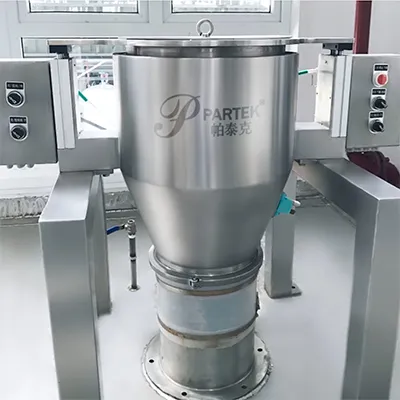

    1. Big Bag Discharging Station
    2. Big Bag Discharging Station The big bag discharging station lifts the FIBC to the feed inlet, where the operator manually releases the bag outlet tie and initiates discharge.
      Applicable bag
      FIBC bulk bags (tonne bags)
      Hoist lifting capacity
      0.2-1.5T
      Working pressure
      0.5-0.6MPa
      Operating temperature
      -20℃ to 45℃
      Learn more

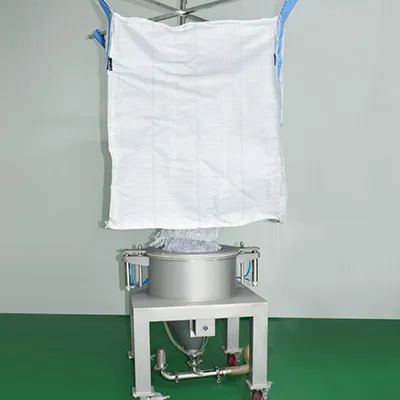

    1. Big Bag Discharging Station (with Pneumatic Massage Units)
    2. Big Bag Discharging Station (with Pneumatic Massage Units) The discharging system lifts the FIBC bag to the feed inlet, where the operator unties the outlet rope to begin unloading. The built-in pneumatic massage units assist material flow by gently agitating the bag, allowing powder or granular materials to fall by gravity into the buffer hopper.
      Applicable bag
      FIBC bulk bags (tonne bags)
      Hoist lifting capacity
      0.2-1.5T
      Working pressure
      0.5-0.6MPa
      Operating temperature
      -20℃ to 45℃
      Learn more

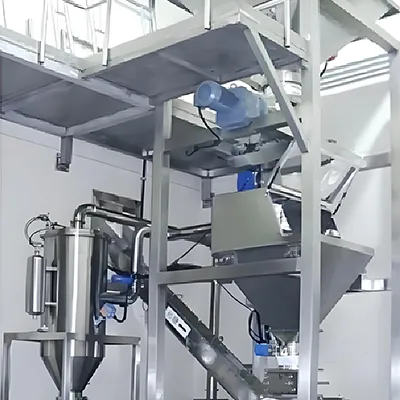

Integrated FIBC & Small Bag Discharging System
    1. Integrated FIBC & Small Bag Discharging System
    2. Integrated FIBC & Small Bag Discharging System The powder unloading system consists of a vibrating-type big bag discharging station, crusher, small bag dump station, dust collection system, pneumatic rotary valve, and U-type screw conveyor. During operation, material from the FIBC is lifted by an electric hoist and unloaded through the vibrating discharging station. Learn more
Containment Discharging Systems

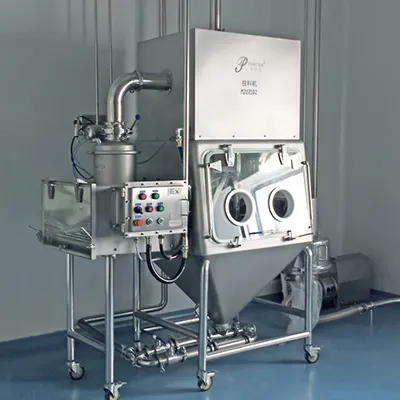

    1. Containment Charging Isolator
    2. Containment Charging Isolator The containment charging isolator provides a sealed solution for powder discharging and transfer. Material bags are conveyed via roller tracks and passed through a transfer window into the operating chamber.
      Overall dimensions
      Customized
      Working pressure
      -0.7kPa to +0.7kPa
      Optional Features
      Oxygen concentration control; Nitrogen purging
      Learn more

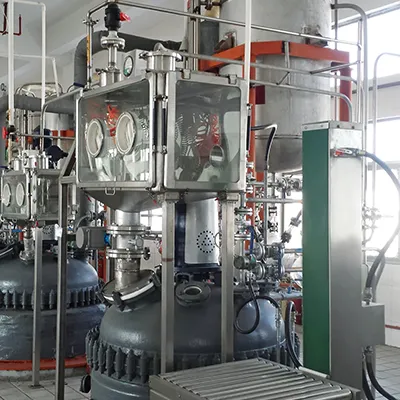

    1. Containment Glovebox
    2. Containment Glovebox A containment glovebox is designed for the safe handling of potent or hazardous powders and charging of reactors under fully sealed conditions.
      Overall dimensions
      Customized
      Working pressure
      -0.7kPa to +0.7kPa
      Optional Features
      Oxygen concentration monitoring; Nitrogen purging
      Learn more

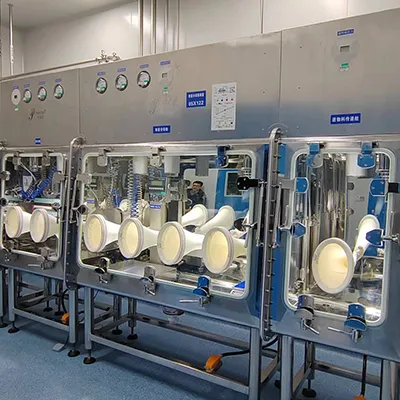

    1. Aseptic Glovebox Isolator
    2. Aseptic Glovebox Isolator Designed for aseptic and high-containment operations, aseptic glovebox isolator is suitable for the pharmaceutical and battery industries.
      Overall dimensions
      Customized
      Working pressure
      -0.7kPa to +0.7kPa
      Optional features
      Oxygen concentration monitoring; Nitrogen purging
      Learn more
Talk to an Expert

Our team is ready to discuss your project and help you find the right solution for powder handling or pelletizing.

Contact Us
Solutions for Industries
  • Case Brands
  • Case Brands
  • Case Brands
  • Case Brands
  • Case Brands
  • Case Brands
  • Case Brands

The powder processing and palletizing equipment is widely used in pharmaceutical, food, and chemical applications. Selection can be made based on material type (e.g. wet, dry, or fragile), flowability, and target throughput. Based on these parameters, a suitable model and configuration are recommended for the intended process.

Our powder handling equipment can be built using high-temperature-resistant, corrosion-resistant, and explosion-proof designs. Typical options include 316L stainless steel construction, PTFE sealing, explosion-proof motors, and nitrogen inerting systems.

Our powder processing machines are designed in line with GMP requirements. Product-contact surfaces can be supplied in SS304 or SS316L with polished finishes down to Ra ≤ 0.4 μm, suitable for installation in clean production areas.

Complete lines can be tailored, including equipment footprint, capacity range, and inlet/outlet height, to achieve direct integration into existing processes.

Voltage and frequency can be supplied according to regional standards (for example 220 V / 380 V / 415 V, 50 Hz / 60 Hz). Control systems can include PLC and HMI with Siemens or Schneider electrical components.
